    Wave Soldering: The Ultimate Guide to Effective Soldering


    Your Comprehensive Guide on Wave Soldering

    Are you looking for something to solder electronic components quickly on your PCB? Soldering irons manually on your printed circuit board can be extremely time-consuming and unsafe. That’s because you will have to inhale smoke for a long time during the process. This is why you must look for alternative ways of soldering that are super effective and quick. This is where wave soldering steps in. It is one of the most effective soldering techniques out there. Want to know more about it? Stay tuned then!

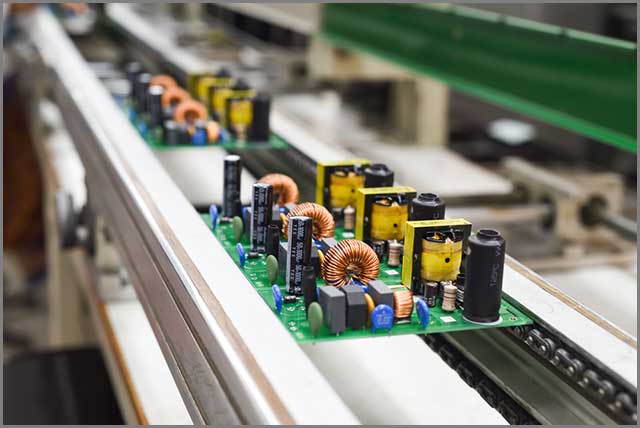

    wave soldering

    What is Wave Soldering?

    Wave soldering was extremely popular during the days when surface mount technology was not fully developed. Almost all the printed circuit boards used the wave soldering technique for the positioning of electronic components. That's because it deals with the mass soldering of the printed circuit boards. As a result, it enabled you to make PCBs as quickly as possible.

    An important thing to know here is that if you want the wave soldering process to work effectively, you will need to pass the printed circuit board through the pan of solder that is in liquid form. There, a pump will make a flood of a patch that will take after a standing "wave." This standing wave showers over the printed circuit board, and the electronic parts will get bound to the PCB. Thus, the contact between the weld and the lock does the enchantment.

    From that point onward, the printed circuit board gets blowing air or water shower for safe cooling. This cooling cycle will get the parts in their place. Moreover, wave patching is normally done in a safeguarding gas climate as nitrogen use mitigates bind surrenders.

    Dip Soldering vs. Wave Soldering

    To put it simply, dip soldering is a patching cycle with restricted extension. Actually like wave soldering, it tends to be utilized both for surface mount and through-opening circuit board congregations. Furthermore, it binds downpours over the exposed metallic spaces of the printed circuit board. Accordingly, you will notice a solid electrical and mechanical association. At long last, dip soldering is the manual adaptation of the programmed patching measure.

    Reflow Soldering vs. Wave Soldering

    Reflow soldering is the most common method of fixing surface mount parts onto the printed circuit board. You should make a weld glue out of motion and patch powder. And afterward, you will utilize that glue to fix electronic parts onto the contact cushions. You will additionally warm the entire bundle under an infrared light or in a reflow stove. The patch will at that point condense and make associations between the joints.

    For the most part, wave soldering is more complex than reflow soldering. In wave binding, the ideal opportunity for which the PCB stays in the patch wave and PCB temperature requires cautious checking. The printed circuit board can be deficient if the binding climate isn't right.

    Nonetheless, with reflow soldering, you don't have to worry much about climate control. In any case, with this being valid, you should realize that wave soldering is less expensive and quicker than reflow soldering. In numerous applications, wave bind is the solitary valuable method of soldering parts onto the board.

    The Process of Wave Soldering

    The entire process of wave soldering is based on a few steps. Let’s check out the steps below.

    1.      Machine

    You will come across numerous sorts of wave-soldering machines in the market. You can purchase lead wave solder machines or without lead wave solder machines. It is entirely your choice. Be that as it may, the primary standards and principal parts of these machines are indistinguishable. Transport is a fundamental part that is utilized during this cycle. It takes printed circuit sheets through different zones.

    Then, you will see a container of the weld and siphon answerable for producing the essential wave. Besides, you will likewise get a motion sprayer and a preheating cushion. Subsequently, these four principle parts make up a soldering machine. The weld in wave soldering machines is generally comprised of a metals' blend.

    2.      Temperature

    Presently, tin alloys for soldering are consistently utilizing Sn 60/Pb40 and Sn 63/Pb37. In this manner, it is suggested that you should ensure that the working temperature stays around 260° ± 5°C. In any case, you ought to likewise consider the general load of the PCB and the parts.

    Essentially, weighty parts can be warmed up to 280°C. Lightweight segments, which are heat-delicate, can be warmed at a temperature as low as 230 °C. Further, it might be ideal if you likewise considered preheating and passing on speed.

    In any case, it is ideal to change the passing on speed instead of tin's temperature because the temperature change will harm the weld joints' quality by influencing the ease of the melted holder. At high welding temperatures, copper will begin to break down, and this will destroy the quality control of by and large binding.

    3.      Fluxing

    During the process of wave soldering, you ought to apply fluid motion on the printed circuit board surface. You will see that fluxing will improve the fastening nature of the electronic segments. These segments, printed circuit sheets, and fluid, when put away, are presented to the environment. This openness can make them oxidized and consequently influences the welding quality.

    4.      Preheating

    Typically, preheating is done before the essential wave welding measure starts. It can build the upper plate's temperature to somewhere in the range of 65 and 121°C. You won't get the best patching results if preheating is deficient. It is because the transition will be unable to arrive at all aspects of the PCB.

    5.      Cleaning

    The cleaning process involves washing a PCB with deionized water or with solvents to dispose of motion remains. Nonetheless, there exists a sort of transition that needn't bother with cleaning. However, it might be ideal if you were cautious; a few applications don't need "no-spotless" motions. It is simply because "no-perfect" changes can be powerless to the states of the interaction.

    wave soldering

    Final Words

    This was your comprehensive guide on the wave soldering process. It is one of the most effective ways of soldering that was used before the introduction of surface mount technology. If you have any more questions on the wave soldering process, feel free to contact us.
