    Solder Reflow Oven: PCB Assemble and Solder Paste


    The Role Of Reflow Oven and Solder Paste In PCB Assembly

    The solder reflow oven plays a significant role in PCB assembly. The basic oven cooks heat and simmers food over a set time. The soldering oven is not that far away from the traditional one we use. Perhaps the best explanation of it would mean the gradual increase in temperature for optimum results over time. The oven includes multiple heat zones that work in unison to solder the printed circuit board. These printed circuit boards go into our everyday appliances and more. The soldering process requires a lot of heat and energy hence only professionals are allowed to control this machine. The surface mount electronic components meet the PCB at exact measured points with the assistance of a controlled temperature profile.

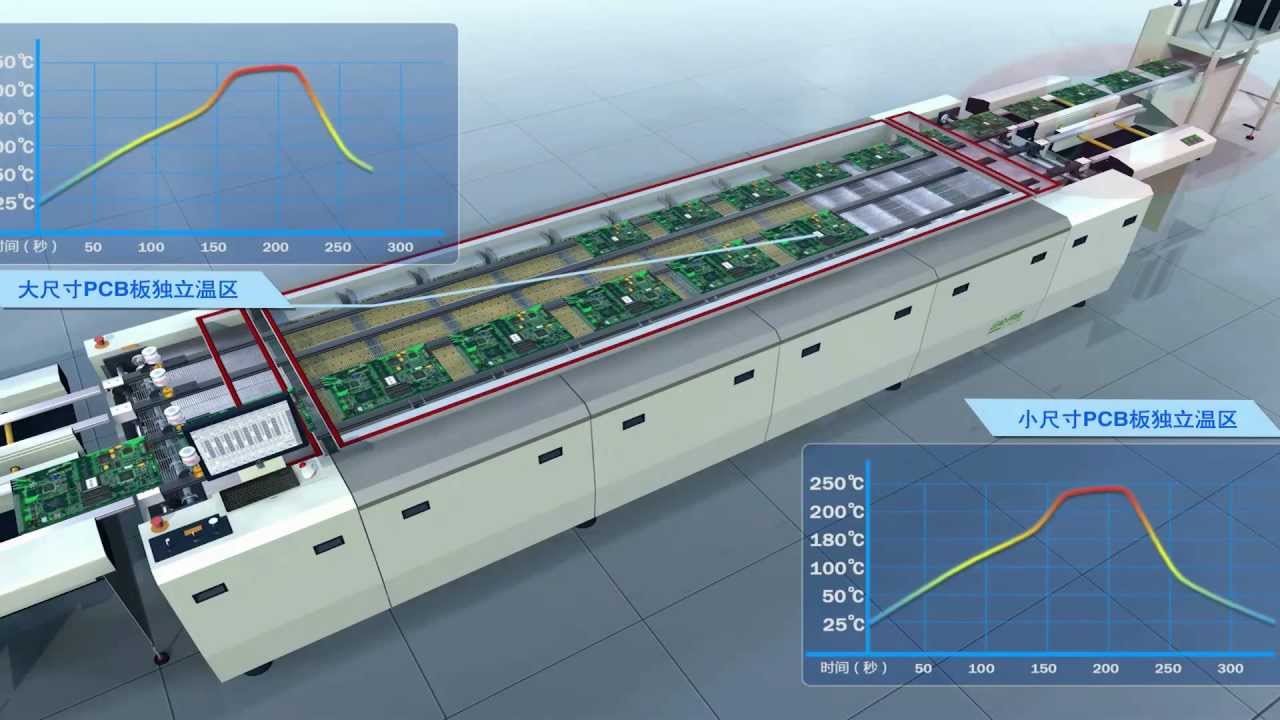

    Reflow Oven

    Furthermore, the soldering oven is divided into its types and functional uses. The infrared and convection ovens employ various haeting zones on the PCB conveyer belt. On the other hand, the vapor phase ovens emit thermal energy in an oxygen-free environment. This entire process takes less than a few hours. The Printed circuit board must have immaculate precision in order for it to work. The intricate details on the Printed circuit board are more than just a craftsman skill, they matter in making the product work. Slight deviance in heating rates and soldering paste might render the board immobile.

    A rundown of the  Soldering process with the Reflow Oven

    The classic reflow oven works with industrial precision. The oven works to solder hundreds of PCB pieces simultaneously. Manufacturers insert every batch with a sturdy conveyer belt and left inside the oven at a designated tempertaure. The board is left inside the oven at the beginning of the process to pre-heat. The natural temperature of the board does not allow the solder paste to activate. Once the board reaches a higher temperature, the solder paste begins to flux. At this point, the solder joints begin to form. The flow process begins and the melted solder paste marks its area.

    The entire procedure comes to an end when the board cools down after leaving the oven. Touching the board during the cooling phase is undesirable. A slight push or pull in the paste can undermine the entire project hence the board does not get touched. Once the board cools off entirely, we get to see a magnificent soldered PCB board. The conventional soldering methods took many hours moreover the end results were not as clean as this. If you wish to gain higher precision then clean off the edges with tiny precision tools. Following the pre-requisites for producing surface mount boards will give you a professional outcome.

    Hence, use balanced metal in the circuit board. The heating zones will activate equally across the board but mismatched metals will melt at different rates. Never leave the reflow oven unattended while the process begins. The procedure demands attention since delicate detailing can go wrong at all times. Scrutinize the Printed circuit board under a magnifying glass and brush off any excess powder. The examination part determines the accuracy of the board. Begin with a practice board before running a full pace operation to fix any irregularities.

    The Role of High-quality Solder Paste in the reflow oven

    The reflow oven can only encourage the soldering process when the board is covered with high quality soldering paste. Shenzhen green Qiantian Tin Technology Co offers a unique variety of professional solder pastes. The solder paste performs more than one job during oven soldering. The paste reaches its thick and creamy consistency due to metal solder particles and flux.

    Without the paste-like adhesive, the surface mount parts would slowly fall apart. The soldering paste acts as a strong glue moreover it removes all impurities from the metal. Simple cleaning from the surface does not remove oxides and impurities as the paste does. It brings together the board and surface-mounted metals since it has a lower melting point than both.

    Reflow Oven

    Furthermore, the soldering paste does not compromise the functioning of the board. Qiantian brings effective soldering items in the market for wide-scale industrial applications. The solder paste is applied in thick layers over the board with the help of jet sprays.

    Using a solder paste with higher flux means greater adhesive properties. Non-toxic pastes pose no harm to the board or attached metals. Large scale PCB soldering operations may use tons of soldering paste therefore they do not cost a lot. Some people prefer making their own soldering paste whereas others can buy them off the market.

    The consistency does not have any special ingredient thus every manufacturer can make their own paste. You can apply the solder paste with a syringe if working on a single board. Fixing the PCB board with new solder paste is quite common. Do not let your smart printed circuit boards o to waste if the adhesive starts to wear off. Use strong soldering paste to remodel the board with home based tools.

    Take Away

    The Solder Reflow Oven is a necessary component in industrial PCB manufacturing. The industrial oven covers a  larger distance and serves a greater number of PCB units.  Printed circuit boards make our lives easier however their production requires endless monitoring.

    The reflow soldering oven bings together to sets of individual oats with the help of soldering paste. The final results show accurate assembly. Manufacturers must carry out every step according to the given time, rushing through the heating or cooling process will leave visible dents. The imperctions on the prnted circuit board do not appear directly in front of the naked, you may need a special instrument to see them. Tiny imperfections have the ability to damage larger projects.

    Therefore, search the PCB for every possible flaw and perfect the soldering while doing so. You might have to start with a new board after detecting a flaw in the previous one. Do not waste time trying to fix the older board since the freshly coated solder will not dissolve for a long time. Instead of making a mess, look a the places where the existing flaws exist and mount the components according.

    To understand more about the workings of a reflow oven, have a look at our website.
